Pipe Pile Rebar Cage Welding Machine Price

Machine Overview

The Pipe Pile Rebar Cage Welding Machine is a fully automated professional system designed for manufacturing high-strength concrete pipe pile rebar cages. The equipment delivers minimal welding strength loss, fast forming speed, a rational mechanical structure, and easy maintenance. Combined with modern variable-frequency control and a human-machine interface, the system ensures stable and reliable long-term high-speed operation while producing high-quality reinforcement cages.

Power System Options

• Medium-frequency version: Uses medium-frequency inverter technology to reduce energy consumption by over 30%. It provides more stable welding current and uniform weld quality, ideal for high-precision, high-volume pipe pile production.

• Power-frequency version: Uses a traditional industrial transformer with mature technology, low failure rate, easy maintenance, and strong cost performance — suitable for medium and small production capacities.

Key Advantages

1. Compatible with square and round pipe piles — one machine processes both cage types without additional equipment investment.

2. Resistance welding core technology with DC heating ensures fast thermal response, strong weld joints without spatter, and strength loss ≤5%, outperforming conventional welding.

3. Fully automatic CNC control with PLC and variable-frequency speed regulation enables precise preset pitch and cage length with minimal error.

4. High efficiency with reduced labor and material consumption — welding line speed up to 3000 mm/min, 3–4× manual efficiency; no overlap needed for stirrups, saving about 1.5% material; a small crew can complete operation.

5. Stable, durable, and user-friendly — intelligent fault alerts, touchscreen interface, quick learning curve, and support for 24-hour continuous production.

6. Supports multiple rebar specifications — capable of processing various longitudinal and ring bar diameters to meet full pipe pile production requirements.

Typical Applications

1. Pipe pile manufacturers — standardized cage production for precast square and round piles.

2. Infrastructure precast plants — bridge, railway, highway, port, and marine foundation piles.

3. Building construction bases — residential, industrial, and commercial foundation piles.

4. Municipal engineering projects — roadworks, underground pipelines, wastewater facilities.

5. Professional piling contractors — on-site cage prefabrication near construction areas.

6. Hydraulic engineering — reservoirs, embankments, and river regulation projects.

This machine is an essential solution for standardized and high-efficiency pipe pile reinforcement cage production in infrastructure prefabrication.

Machine Structure

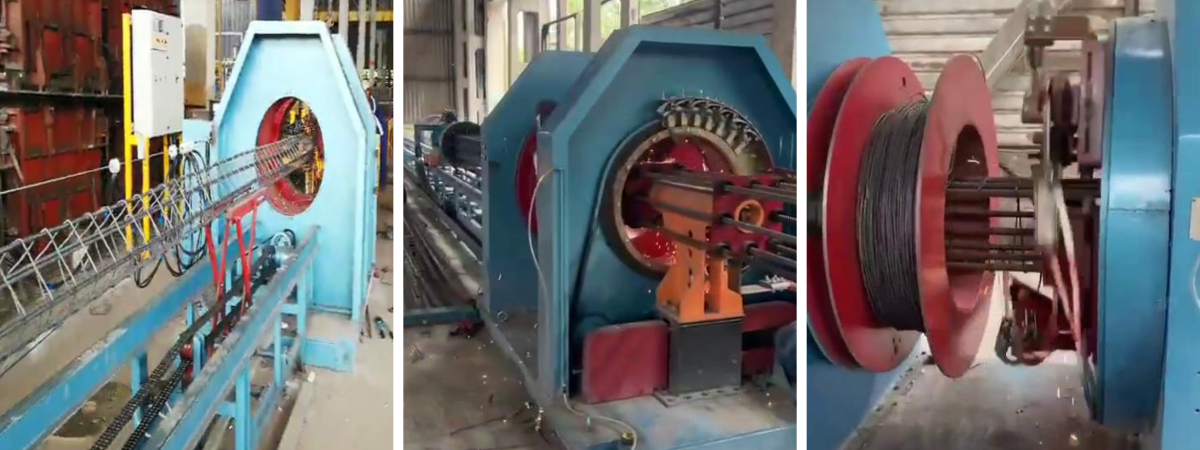

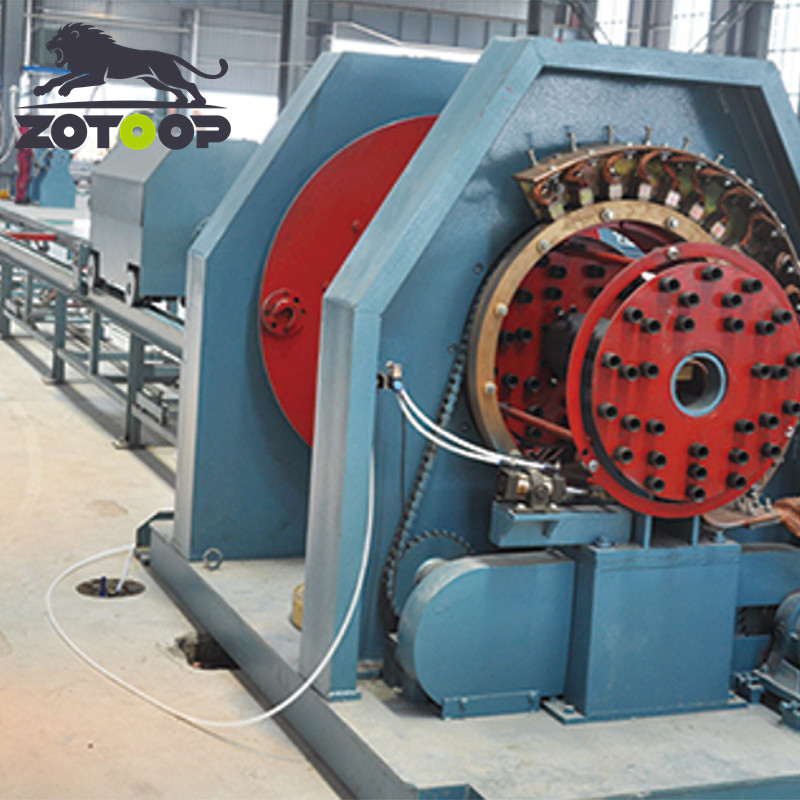

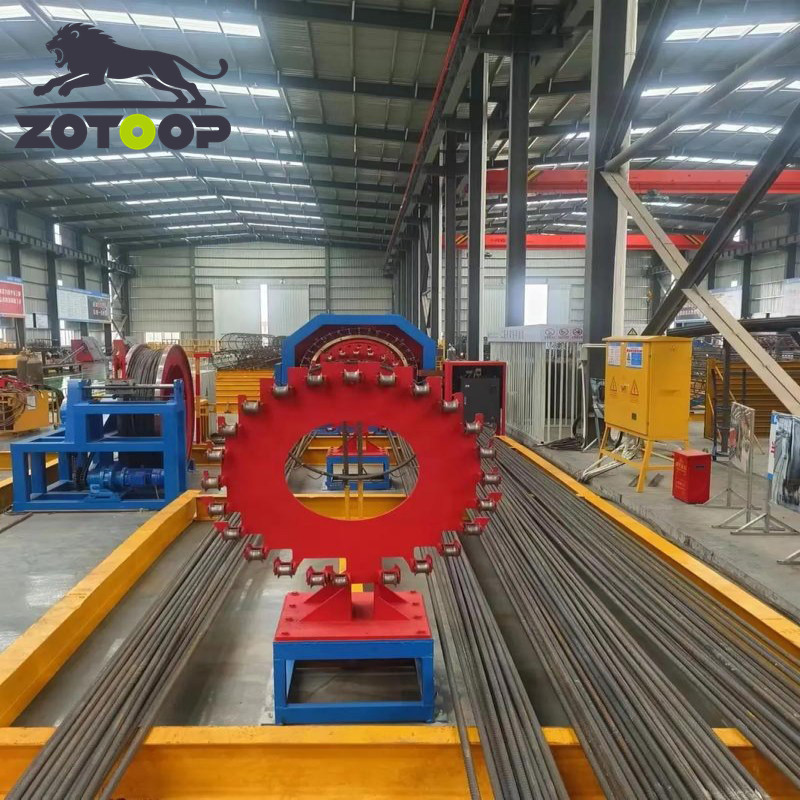

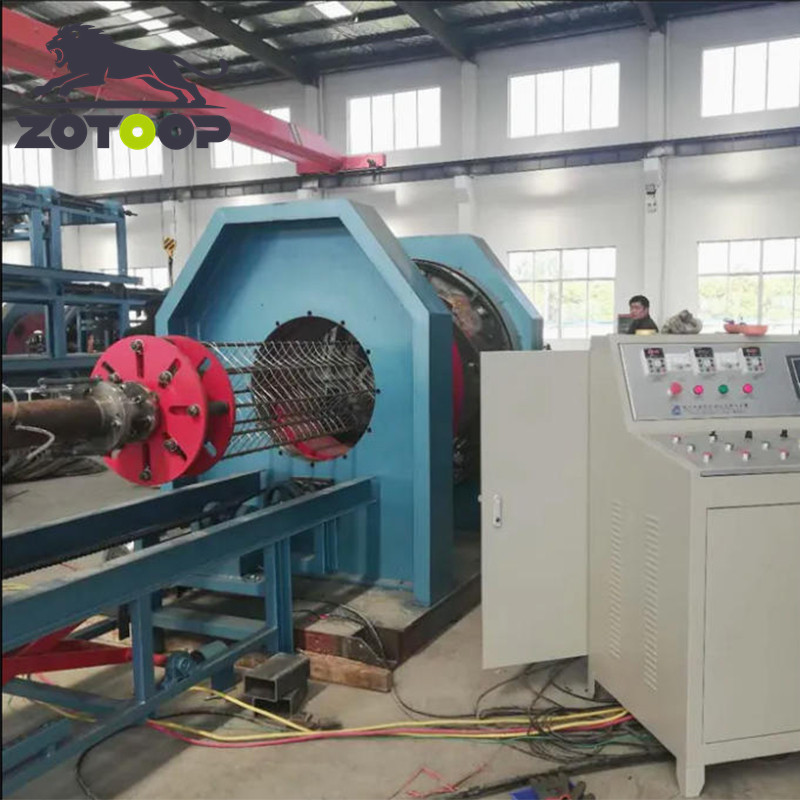

The Pipe Pile Rebar Cage Welding Machine mainly consists of a head unit, tail frame, carriage, steel bar support table, and electrical control cabinet.
