Pipe Pile Cage Welding Machine

Machine Overview

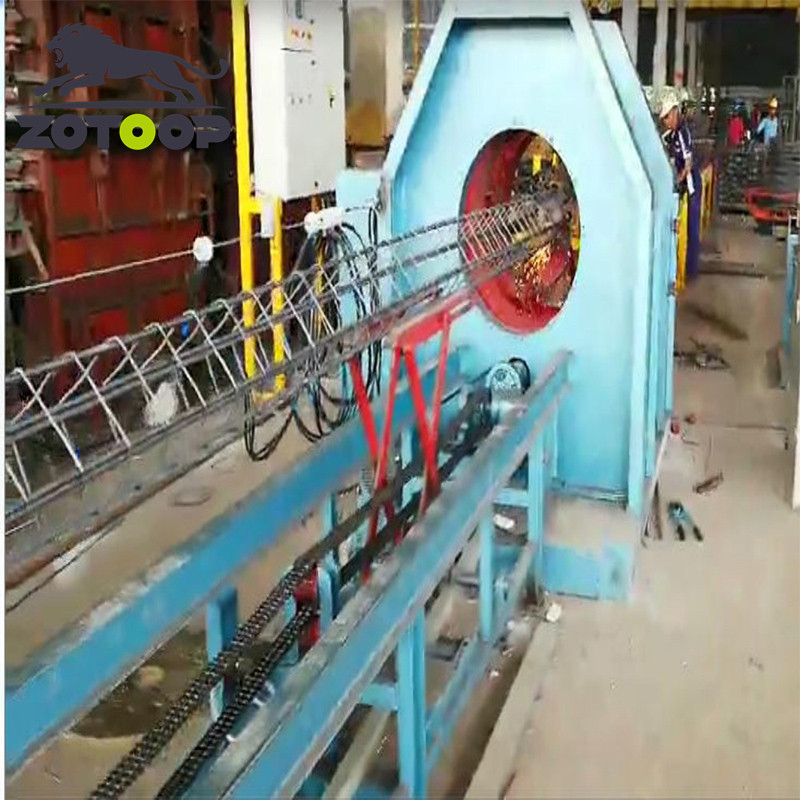

The Pipe Pile Rebar Cage Welding Machine is a fully automated manufacturing system developed for producing high-strength reinforcement cages used in concrete pipe piles. It delivers rapid forming performance with minimal weld strength reduction, supported by a well-engineered mechanical structure that simplifies upkeep. With integrated variable-frequency drive control and an intuitive human-machine interface, the system maintains stable, long-duration high-speed operation while consistently producing precision-quality cages.

Power System Options

Medium-frequency configuration

This configuration employs medium-frequency inverter technology to reduce energy consumption by over 30%. It ensures steady welding current output and consistent weld integrity, making it particularly suitable for precision-focused, high-capacity pipe pile production.

Power-frequency configuration

Built around a conventional industrial transformer, this option offers proven durability, dependable performance, and straightforward servicing. It represents a cost-effective solution for medium and smaller production environments.

Key Advantages

• Dual-format capability — Handles both square and round pipe pile cages on a single platform, eliminating the need for separate equipment.

• Enhanced resistance welding — DC heating technology enables fast thermal response, clean spatter-free joints, and weld strength loss controlled within 5%, surpassing traditional welding standards.

• Precision CNC automation — PLC-based control paired with variable-frequency adjustment ensures accurate preset spiral spacing and cage length with minimal tolerance deviation.

• High productivity efficiency — Achieves welding speeds up to 3000 mm/min, delivering three to four times the output of manual fabrication. Spiral reinforcement requires no overlap, reducing material consumption by roughly 1.5%, while operation can be managed by a small crew.

• Reliable operation — Intelligent fault monitoring, touchscreen controls, and simplified training support continuous 24-hour production with minimal downtime.

• Wide material adaptability — Compatible with various longitudinal and ring bar diameters, accommodating diverse pipe pile manufacturing requirements.

Typical Applications

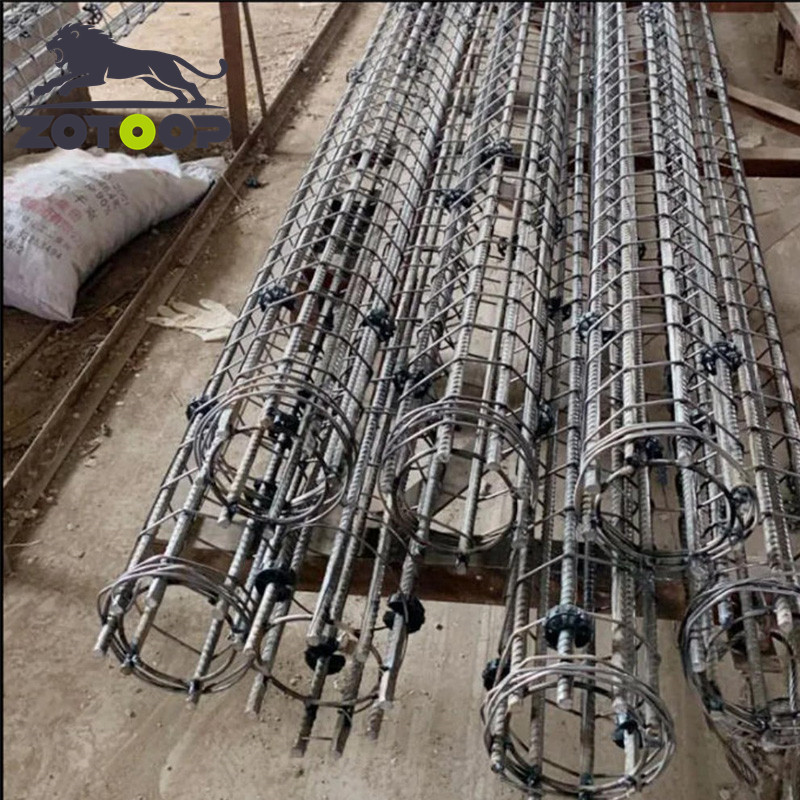

• Standardized cage fabrication for precast square and round pipe pile manufacturers

• Infrastructure precast facilities supporting bridge, railway, highway, port, and marine foundation projects

• Residential, commercial, and industrial foundation construction

• Municipal engineering, including roadworks, underground pipeline systems, and wastewater facilities

• On-site cage prefabrication for professional piling contractors

• Hydraulic engineering projects such as embankments, reservoirs, and river management works

This equipment serves as a dependable, high-efficiency solution for standardized pipe pile cage production in modern infrastructure prefabrication.

Machine Structure

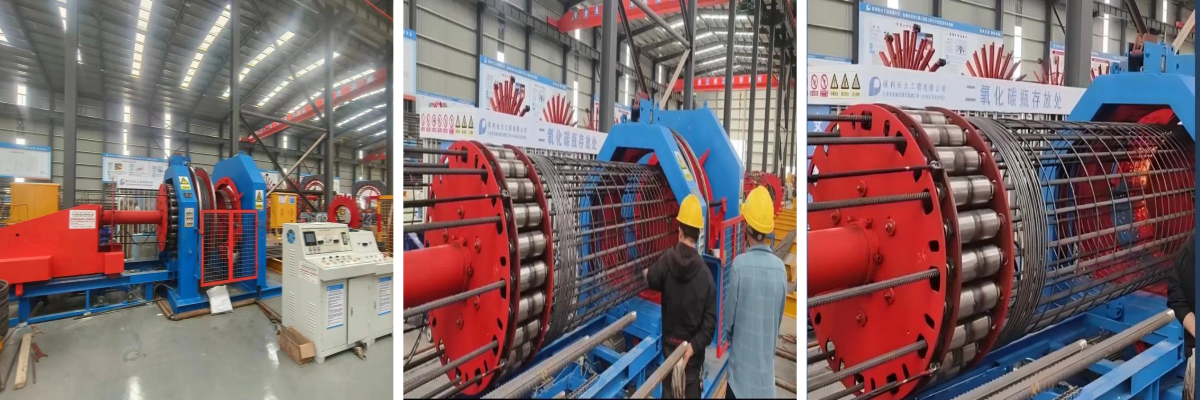

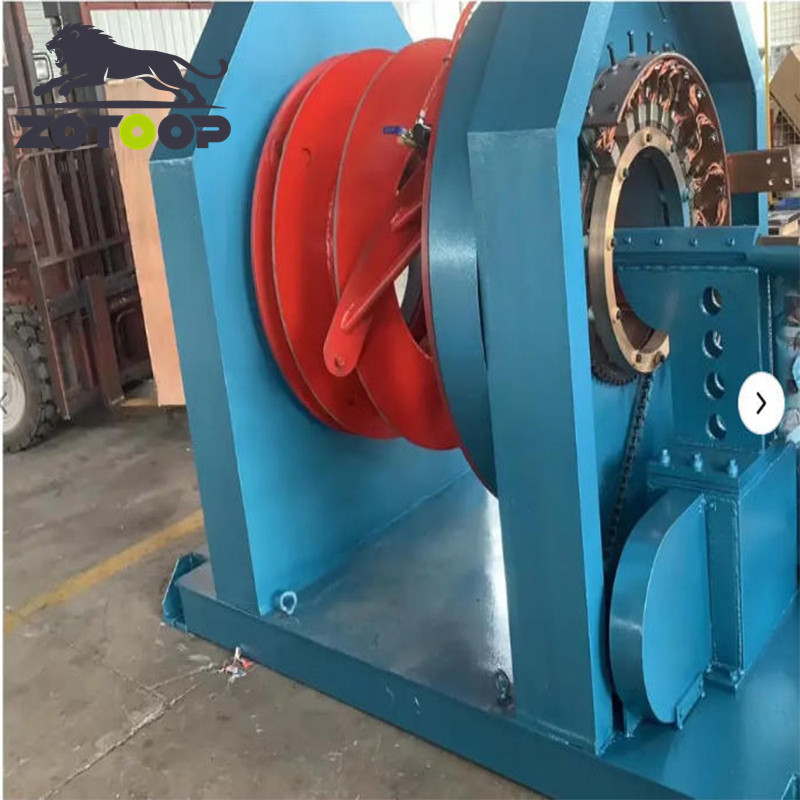

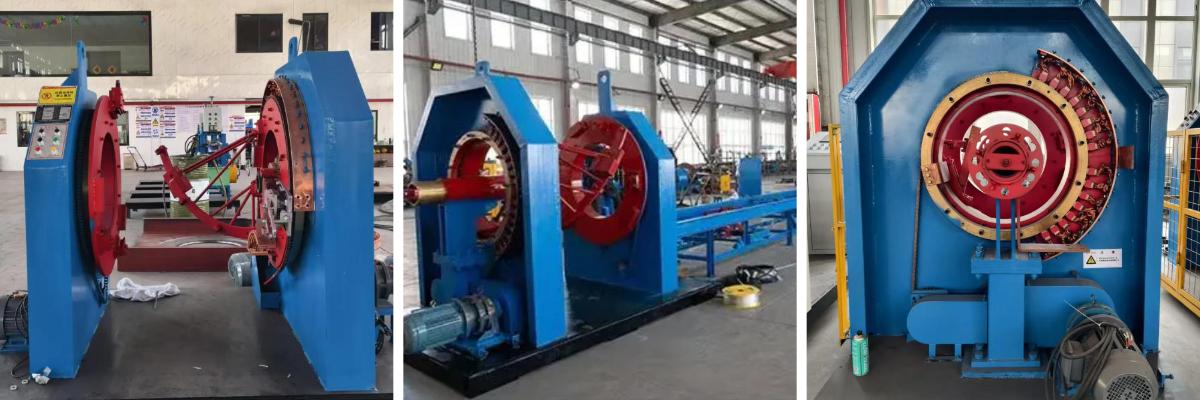

The Pipe Pile Rebar Cage Welding Machine consists of a coordinated assembly including the headstock unit, tail support frame, traveling carriage, steel bar holding platform, and integrated electrical control cabinet. Together, these components enable synchronized automated operation for accurate cage forming and welding.
