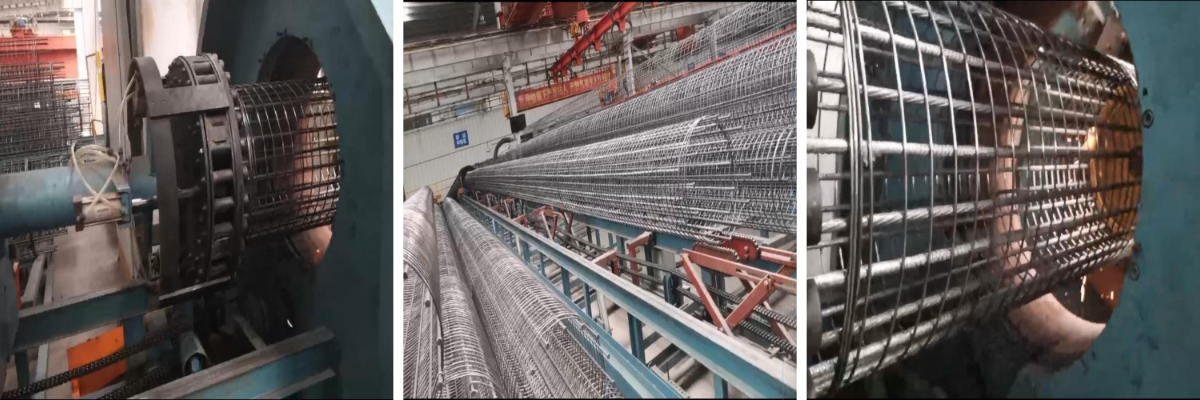

Pipe Pile Rebar Cage Welder

Machine Overview

The Pipe Pile Rebar Cage Welding Machine is a fully automated industrial system engineered for producing high-strength reinforcement cages used in concrete pipe piles. Designed for precision and durability, the machine minimizes welding strength loss while maintaining rapid forming speeds. Its optimized mechanical structure simplifies maintenance, and the integration of advanced variable-frequency control with a user-friendly human-machine interface ensures stable, continuous high-speed operation. The result is consistent production of high-quality rebar cages with excellent structural reliability.

Power System Options

Medium-frequency configuration
This version adopts medium-frequency inverter technology to cut energy consumption by more than 30%. It delivers smoother welding current and more uniform weld quality, making it ideal for precision-demanding, high-volume pipe pile manufacturing.

Power-frequency configuration
Utilizing a traditional industrial transformer, this option offers proven reliability, low maintenance requirements, and strong cost efficiency — a practical choice for medium-scale production environments.

Key Advantages

• Dual compatibility — Processes both square and round pipe pile cages on a single machine, eliminating the need for additional equipment investment.

• Advanced resistance welding — DC heating technology enables rapid thermal response, strong spatter-free weld joints, and welding strength loss controlled within 5%, exceeding conventional welding performance.

• Precision CNC automation — PLC-based control and variable-frequency speed adjustment allow accurate preset cage pitch and length with minimal deviation.

• High productivity — Welding speeds reach up to 3000 mm/min, delivering 3–4 times the efficiency of manual production. Stirrups require no overlap, reducing material usage by approximately 1.5%, while a small crew can manage full operation.

• Operational stability — Intelligent diagnostics, touchscreen control, and simple operation support continuous 24-hour production with minimal downtime.

• Wide processing range — Handles multiple longitudinal and ring bar diameters to meet diverse pipe pile production specifications.

Typical Applications

• Pipe pile manufacturing facilities requiring standardized cage fabrication

• Infrastructure precast plants serving bridges, railways, highways, ports, and marine foundations

• Residential, industrial, and commercial foundation construction

• Municipal engineering such as roadworks, pipeline systems, and wastewater infrastructure

• Professional piling contractors performing on-site prefabrication

• Hydraulic and civil engineering projects including embankments and river control

Machine Structure

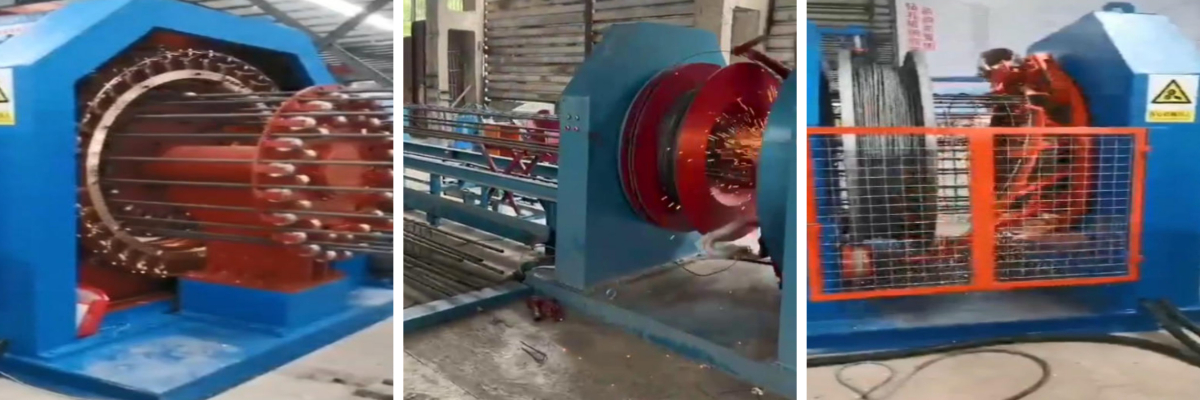

The Pipe Pile Rebar Cage Welding Machine mainly consists of a head unit, tail frame, carriage, steel bar support table, and electrical control cabinet.

Technical Parameters
