Foundation Piling Steel Cage Welding Machine

Product Description

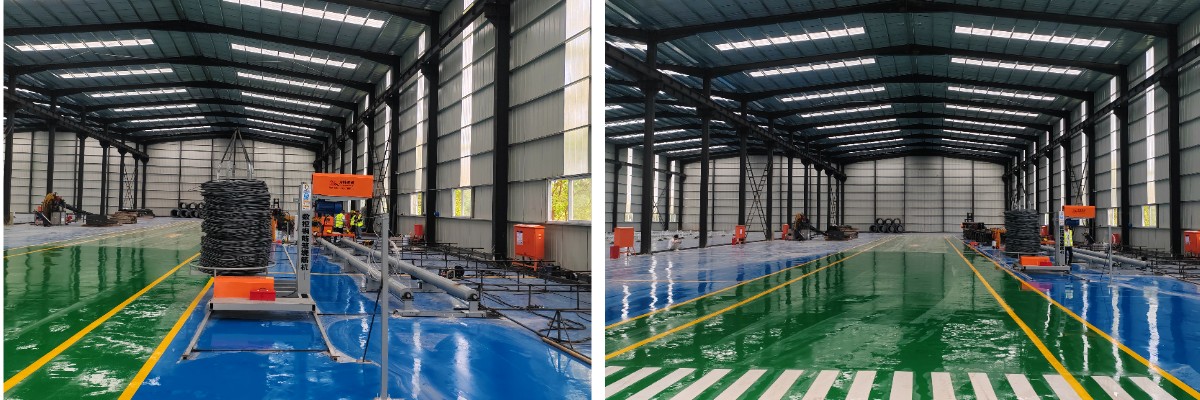

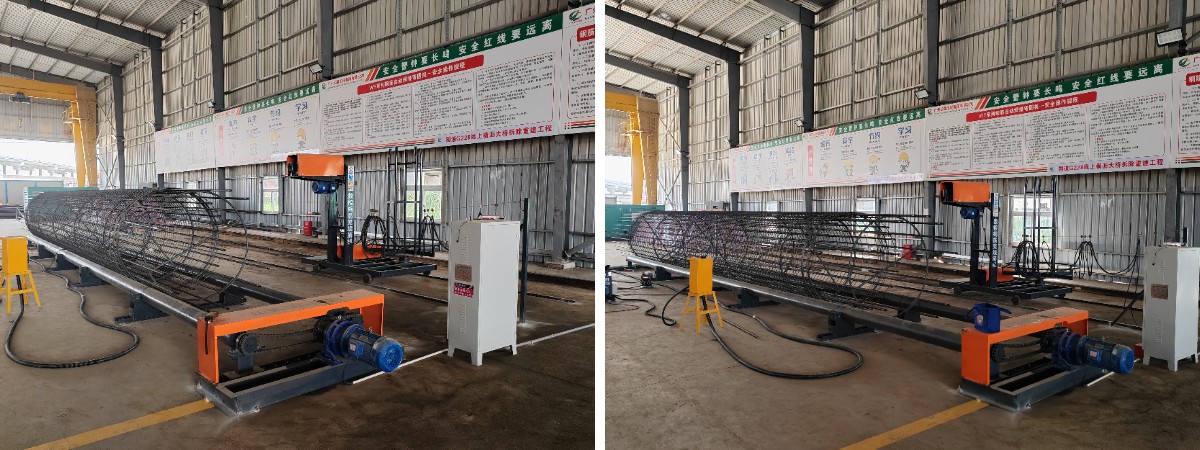

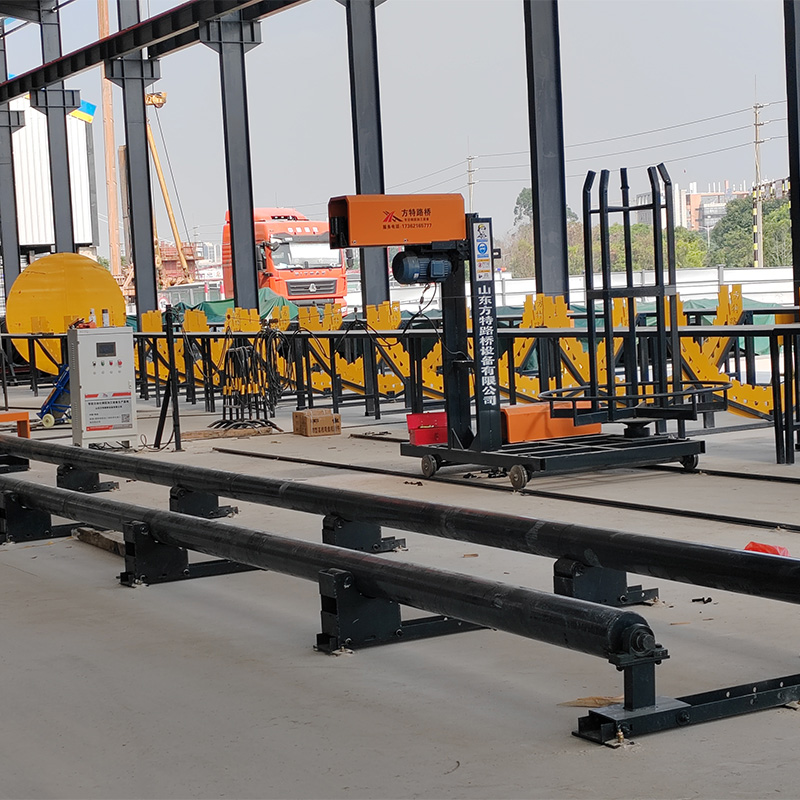

The Foundation Piling Steel Cage Welding Machine is a CNC-controlled equipment specially designed for winding spiral reinforcement around the outer surface of a steel cage.

During construction, workers first manually weld the longitudinal bars and internal stiffening rings to form the basic framework of the steel cage. The cage is then placed onto the machine for spiral bar winding.

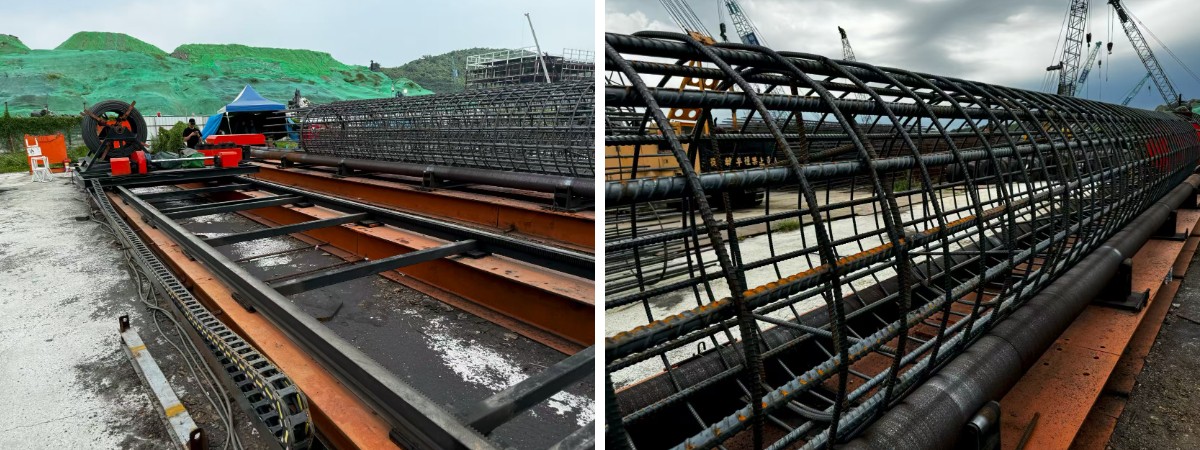

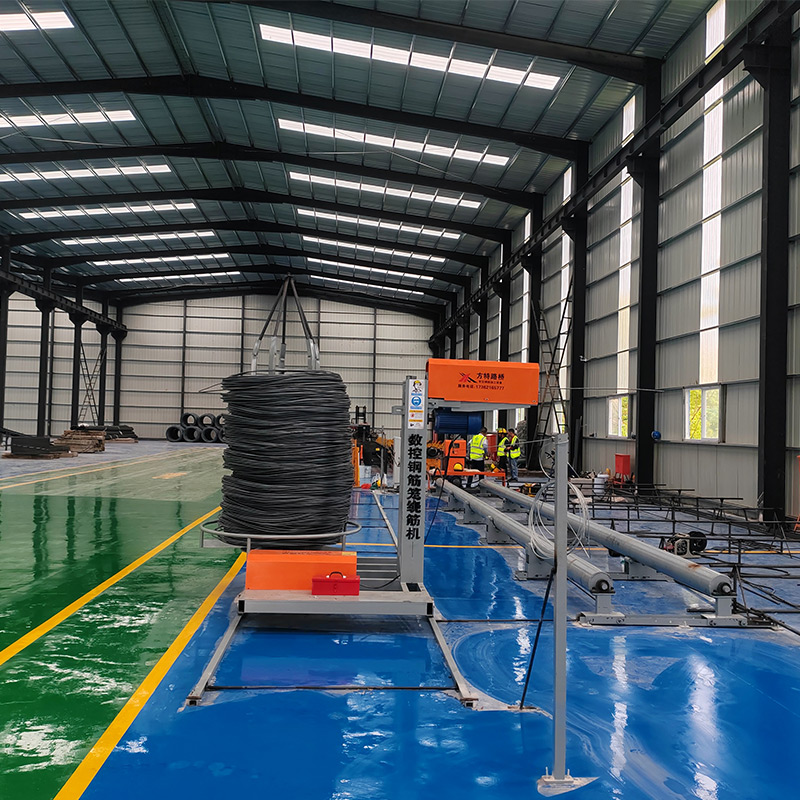

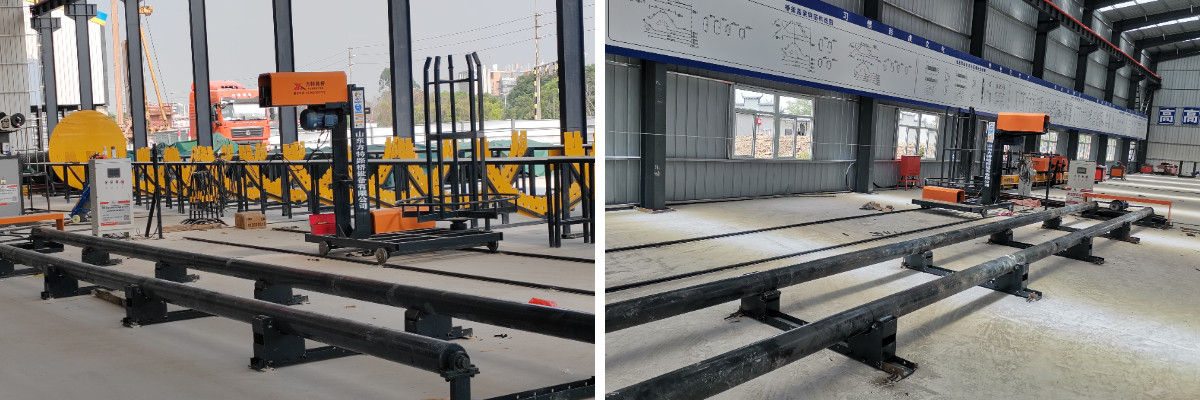

The PLC control cabinet enables automated operation of the machine. By adopting PLC and frequency conversion control technology, the system ensures higher winding accuracy and stable production performance. The spiral bar and main bars can be processed simultaneously. The intelligent automatic feeding system makes large-diameter steel cage fabrication easier and more efficient.

With years of development and technological improvement, the CNC steel cage winding machine has become an essential piece of equipment in the rebar processing industry due to its stable quality and high working speed.

Operation Precautions

1. If any abnormal condition occurs during operation, stop the machine immediately to check the cause. Resume operation only after the fault has been eliminated.

2. When changing specifications and adjusting the slider position, ensure all bolts are fully tightened to prevent the slider from flying out during welding.

3. Before powering on, make sure all personnel stay away from the machine (including the spiral bar feeding system). Crossing over the spiral bar is strictly prohibited.

4. During maintenance or adjustment (including limit switches and proximity switches), all power sources must be completely disconnected. Adjustment under live power is strictly prohibited.

Advantages of the CNC Steel Cage Winding Machine

1. High Level of Automation

The machine adopts computer numerical control and PLC control systems. The rotation speed and traveling speed are continuously adjustable.

2. High Welding Speed

Equipped with an automatic welding torch, production efficiency is increased by 3–4 times compared with traditional manual processing, significantly shortening project duration.

3. Stable and Reliable Quality

Reliable welding points, high accuracy in longitudinal bar distribution, good consistency, and uniform stirrup spacing provide a solid foundation for fast cage assembly.

4. Low Labor Intensity

Only 2–3 operators are required for machine operation, with significant advantages in producing large-diameter cages.

5. Easy Operation

Workers can operate the machine after simple training.

6. Strong Adaptability

Suitable for welding steel cages with main bar diameters ranging from 12mm to 50mm. Stirrup spacing can be automatically adjusted. The machine can produce cages of various diameters, lengths, and specifications for different industries.

Technical Specifications

Model: YGT3000-12
