1. Fully Automatic Integrated Welding: Automatic main bar feeding, positioning, and spiral welding ensure unmanned operation with stable CO₂ shielded welding quality.
2. High Efficiency & Labor Saving: A 9–12 m cage can be completed in 20–25 minutes with only 1–2 operators, significantly increasing output per shift.
3. Wide Range & Precision Control: Supports Ø800–2500 mm cages without mold change, with CNC adjustment and ±2 mm pitch accuracy for consistent, reliable production.

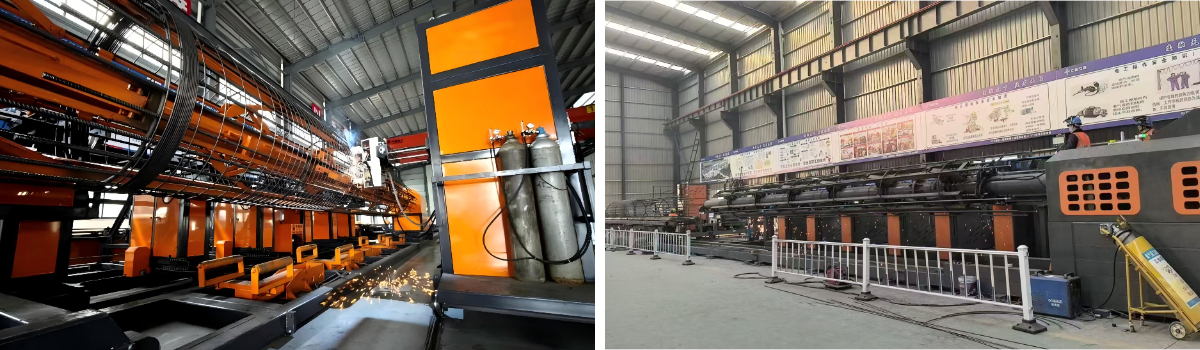

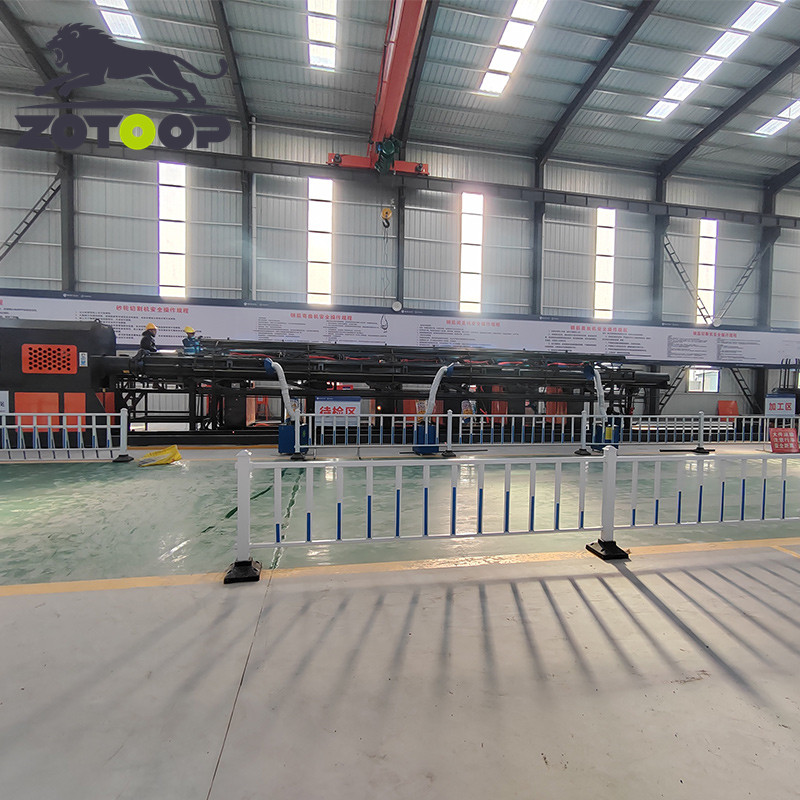

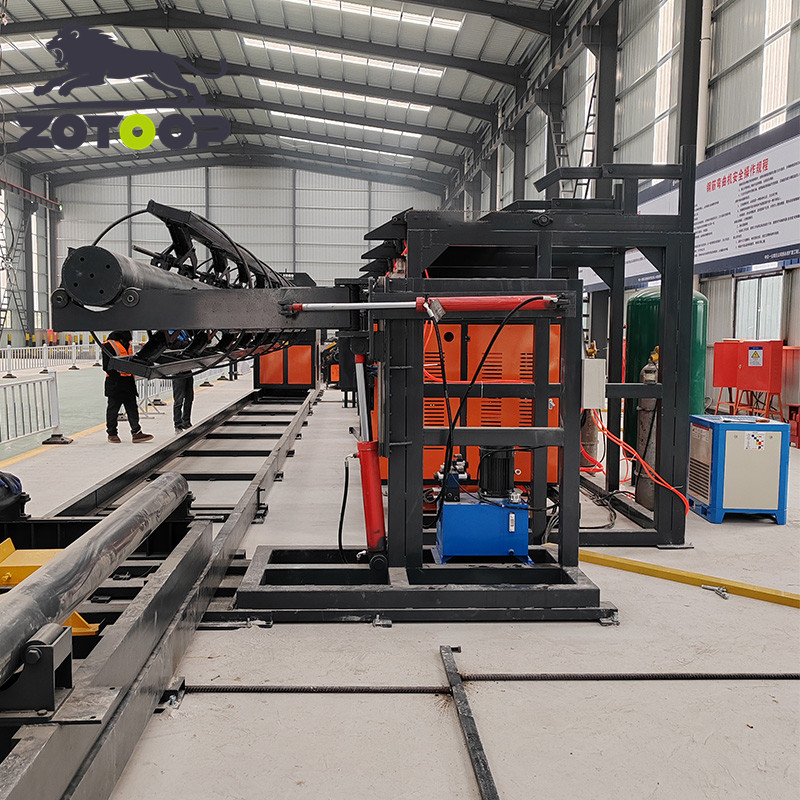

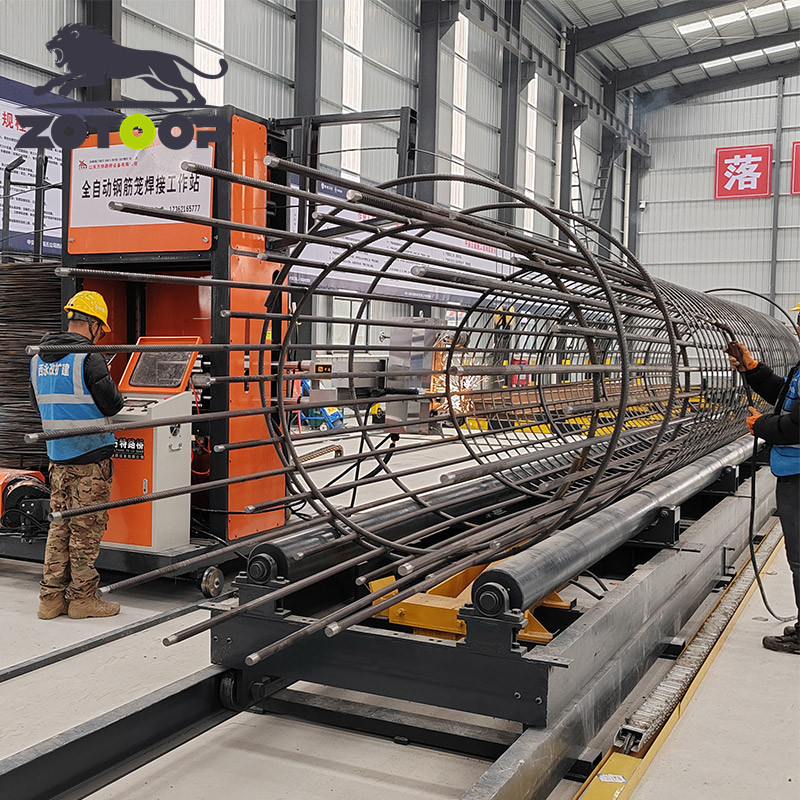

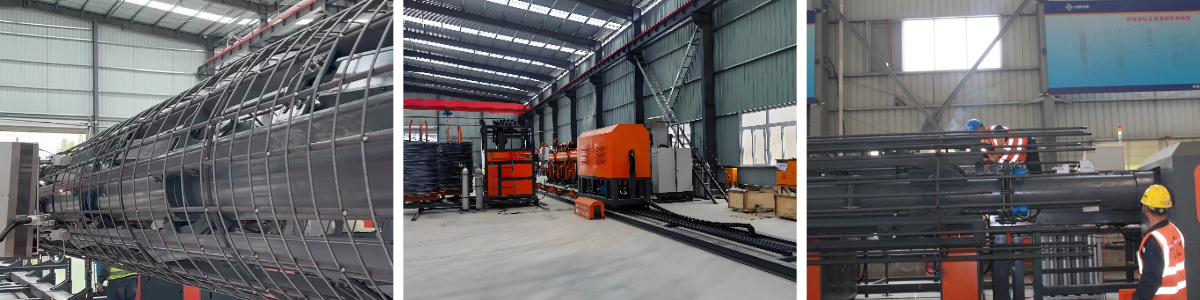

CNC Steel Cage Welding Workstation (Model: YGTZ2500-12)
The CNC Steel Cage Welding Workstation YGTZ2500-12 is a fully automatic steel cage forming and welding system with independent intellectual property rights. It is widely used in metro construction, bridges, building foundations, airports, highways, and other infrastructure projects.
The system integrates:
Automatic main bar feeding system
Main bar detection, positioning & welding system
Spiral bar welding system
Automatic cage discharge system
The entire welding process is fully automated without manual intervention.
Main bar welding time is less than 35 seconds per bar. Welding parameters can be preset and stored according to process requirements, significantly reducing labor while greatly improving efficiency.
A 9–12 meter cage framework can typically be completed in about 20 minutes, and spiral winding and welding can be finished within 25 minutes.
The system ensures:
No false welding
Stable and reliable weld quality
Precise control of welding time and position
Reduced welding material consumption
Multiple cage specifications can be preset and stored. Operators simply select parameters via touchscreen for one-button production. The production flow is streamlined and highly automated.
Compared to manual fabrication that requires frequent on-site supervision, this workstation automatically monitors and records welding data in real time, generating inspection reports and ensuring stable, compliant production quality.
Comparison with Traditional Equipment
| Comparison Item | CNC Steel Cage Welding Workstation | Traditional Cage Rolling Welding Machine | (Upgraded) Dual-Station CNC Steel Cage Welding Workstation |
Welding Type | Fully automatic main bar + spiral welding | Spiral automatic, main bars manually welded | Fully automatic main bar + spiral welding |
Welding Method | Automatic CO₂ gas shielded welding | Manual welding, inconsistent quality | Automatic CO₂ gas shielded welding |
Cage Diameter | 790–2340 mm, no mold replacement | 800–2200 mm, requires multiple molds | 790–2340 mm, no mold replacement |
Diameter Adjustment | CNC automatic support ring adjustment | Manual mold replacement | CNC automatic adjustment |
Feeding Mode | CNC chain conveyor, unmanned | Manual bar insertion | CNC chain conveyor |
Spiral Bar Diameter | 6–16 mm | 6–16 mm | 6–16 mm |
Cage Docking | Automatic measurement compensation | Manual correction required | Automatic compensation |
Single/Double Main Bars | Supported | Single only | Supported |
Single/Double Spiral | Supported | Single only | Supported |
Dual Main Bars (Horizontal) | Supported | Not supported | Supported |
Inner Support Ring Adjustment | CNC automatic | Manual | CNC automatic |
Number of Main Bars | 4–128 bars | Mold-dependent | 4–128 bars |
Operators Required | 1 person | 4–6 persons | 1 person |
Production Capacity (Ø1600 mm) | 10–12 cages/shift | 6–8 cages/shift | 20–24 cages/shift |
Main Bar Welding Time (12m) | 15 min/section | Unstable manual control | 15 min/section |
Spiral Welding Time (12m) | 15 min/section | 20 min/section | 15 min/section (synchronized) |
Technical Specifications
Model: YGTZ2500-12
Cage Inner Diameter: 800–2500 mm
Cage Length: 12 m
Max Cage Weight: 6000 kg
Coil Bar Diameter: 5–14 mm
Spiral Pitch: 50–500 mm
Main Bar Diameter: 16–50 mm
Hydraulic Pressure: 10 MPa
Total Rated Power: 100 kW (including 8 welding machines)
Dimensions (L×W×H): 36 m × 8 m × 3 m
Head Travel Speed: 0–3 m/min
Spiral Carriage Speed: 0–3 m/min
Cage Rotation Speed: 0–10 r/min
Total Weight: Approx. 38 tons
Main Bar Welding Frequency: 0–3 times
Main Bar Single Weld Time: 0–2 s
Spiral Welding Mode: Full / Intermittent / Self-adjustable
Spiral Single Weld Time: 0–1 s
Spiral Type: Single / Double
Main Bar Type: Single / Double
Power Supply: 380V / 50Hz
Cage Unloading: Automatic trolley lateral movement
Welding Units: 2 sets (main & spiral movable welding devices)
Intelligent Bar Length Memory: Standard
Main Bar Feeding: Pneumatic automatic positioning
Bar Alignment: Servo automatic positioning
Alignment Accuracy: ±3 mm
Single Main Bar Welding Time: 30–50 s
Cage Lifting Supports: 6 sets
Lifting Mode: Hydraulic system
Oil Pump Pressure: 10 MPa
Air Pressure: 0.9 MPa
Cage Rotation Accuracy: ±0.2°
Spiral Pitch Accuracy: ±2 mm
Stored Cage Programs: 30 sets
Operators Required: 1–2 persons
Spiral Pay-off Speed: 0–50 m/min (VFD adjustable)
Spiral Straightening: Dual-line roller straightening
Spiral Load Capacity: 6000 kg
Inner Support Rings: 6 pieces
Support Ring Spacing Adjustment Range: 1700–2000 mm
Adjustment Mode: CNC programmable
Main Components List
| Component | Model | Specification | Quantity |
Main Turntable Servo Motor | 7.5 kW | — | 1 |
Fixed-Length Travel Servo Motor | 2.3 kW | — | 1 |
Trolley Travel Motor | 4 kW | — | 1 |
Drum Rotation Motor | 7.5 kW | — | 1 |
Spiral Travel Motor | 3 kW | — | 1 |
Spiral Straightening Motor | 5.5 kW | — | 2 |
Industrial PLC Controller | XD5E | — | 1 |
Touchscreen (HMI) | PI Series | — | 1 |
Gear Reducer | YPCD | — | — |
Cylinder | RONAY | — | — |
Welding Machine | 500 | — | 8 |
Frequency Inverter | — | — | — |
Electrical Components | Customized | Relays / Contactors / Proximity Switches | — |
Three-Phase Motor | — | Three-phase asynchronous motor | — |
